Beam 280W Spot Wash 10R Stage Moving Head Light For Wedding / Event / Bar

Technical Information

1. Voltage: AC100-240V 50/60HZ

2. Bulb: Osram HRI 280w

3. Total power:450W

4. Luminous flux 7950 lm

5. Up to 8000K color temperature

6. Style: Spot,Wash,Beam 3in1 Light

7. Color wheel: 1 color wheel with 13 colors plus white

8. Gobo wheel: 2 gobo wheels with 21 gobos plus white

9. Gobo size:14.5mm in diameter

10 Prism:3D 8-facet prism with row prism

11. Lens: high brightness optical lens

12. Focus: electronic focus

13. Dimming 0-100% linear dimming

14. Horizontal / vertical angle: X axis 540 degrees, Y-axis 270 degrees

15. Control mode: DMX512, master-slave, auto movement,sound control

16. Channel: 16/24 Channel IP

17. Protection: IP20 reliable high efficiency switching power supply

18. Contol bulb on/off and reset with delay function

19. Display: LCD

20. Light size: 523*440*570mm

21.Weight: 21kg

22. Features: unlimited focus and zoom,prism position,frost function

Performance

1. A color plate , 13 colors plus white , with color and halftone water feature.
2. A fixed pattern plate , 14 patterns plus white , with dithering and water features ;
3. A rotating gobo wheel with 9 rotating pattern plus white , each pattern has a negative spin , shake and water features.
4. An 8- prism , a ladder mirror with reverse rotation.
5. Electronic lighting function , the bulb can be turned on and off via the control console ; electronic energy-saving mode.
6. linear fog function.
7. The multi-level optical lens group electronic focus, zoom function.
8.16 high quality stepper motor driver , X / Y -axis three-phase motor , faster , quieter .
9. 540 degrees horizontal and 280 degrees vertical scanning speed smooth , with automatic error correction and automatic adjustment function malfunction .
10. The machine uses optical positioning technology , more accurate positioning , reset quieter .
11. bulbs overheating protection function, when the lamp body temperature exceeds the rated temperature , can automatically cut off the power supply light bulbs .
12.PFC features wide input voltage switching power supply , ensure the safety performance of the lamp during use , but to improve the stability of the whole lamp . Ensures worldwide use .

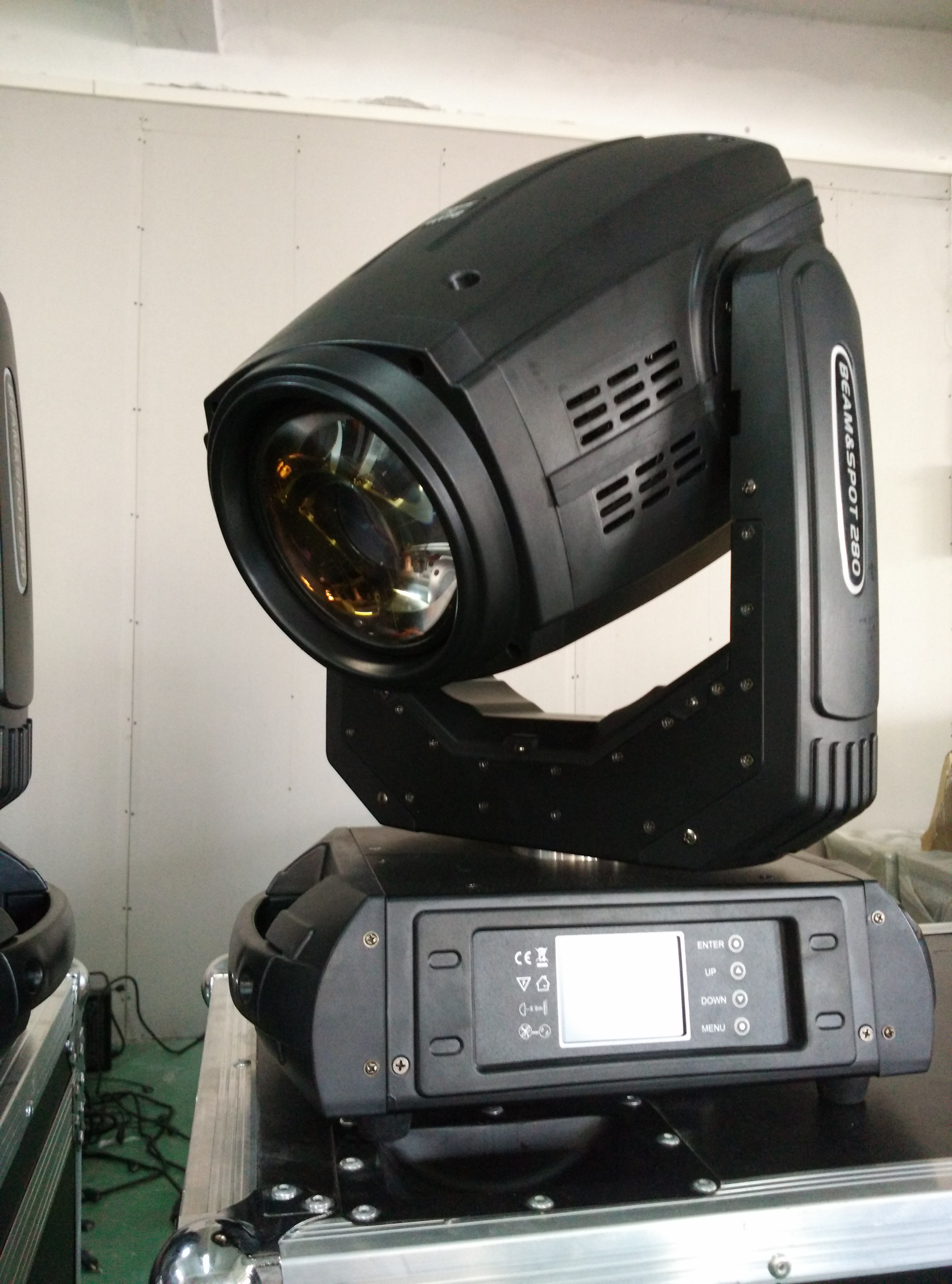

Product Images
