| Ask Lasest Price | |
| Brand Name : | Cheng Wen |
| Model Number : | P6-16S |
| Certification : | CE |
| Price : | Quotation is provided upon inquiries. |
| Payment Terms : | Western Union, MoneyGram, T/T |
| Supply Ability : | 200Sqm /Month |
| Delivery Time : | 7-15Days ,according quantity |
Product Parameter of P3 indoor stage rental led screen
| Indoor Die casting Aluminum Rental LED Displays | ||
| Module | Pitch/mm | P3 |
| Module size/mm | 192*192mm | |
| Density of pixel/(dots/m2) | 111,111 | |
| Pixel composition | SMD 3 in 1 | |
| Led encapsulation | SMD2121 | |
| Resolution of module | 80x80 | |
| Optimum viewing distance | 2-10 | |
| Main | View angle / ° | 140H,120V |
| Max power consumption/W/M2 | 1200 | |
| Size of cabinet/mm | 576*576mm | |
| Resolution of cabinet | 160x160 | |
| Weight of cabinet/kg | 8 | |
| Driving method | 1/16 scan constant current | |
| Refresh rate Hz/S | 1500 | |
| Luminance of white balance | ≥2000 nits | |
| Operation of Environmental Temperature/°C | below 30 to above 50 | |
| Working voltage | 110-220 VAC/+/- 10% | |
| Grey scale/color | displaying colors≥16.7M(synchronized) | |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |
| Control system | linsn(sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
Characteristic of Rental LED Display Screen
1) Super slim,super light,easy to carry,to transport.
Cabinet size:576mm*576mm*50mm
Cabinet weight:8kg/10kg
2)Die-casting Aluminum: very stable, no deformation.
3)Flatness: forming mold in one time, accurate to 0.2mm.
4)No noise: with fanless power supply, it's completely quiet.
5)Fast installation: only one man can install 50 cabinets by hand
within an hour
6) High definition:111,111dots/sqm(P3)

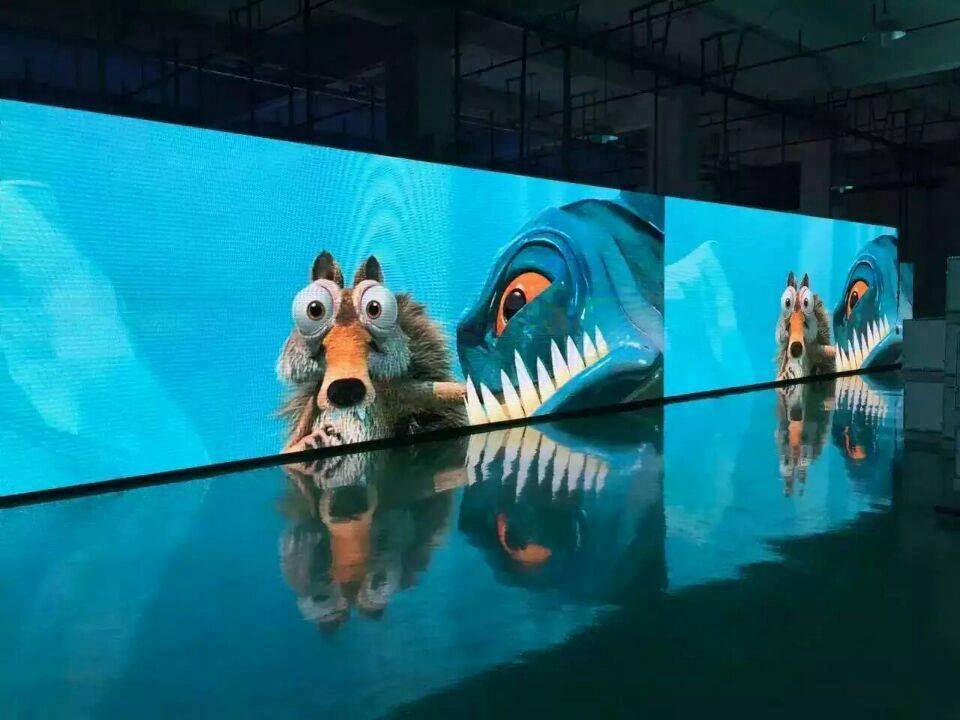

LED Screen cabinet Image
Appllication occassion
Prodcuts Features & Apllication Fields
At first , our screen use Nova system and MBI 5124IC , so that
brightness and refresh rate can be high. On average , brightness
can be about 2000cd/sqm , and refresh rate can be up to 1920HZ.
As for performance and function , it is relatively small pixel for
stage rental led screen . can be used in important and formal
scenes. And it is suitable for stgae rental , congress, wedding
ceremony , parties ,and many events.
About the price , it is reasonable, not too high for distributors ,
which is economic .
1. Solution for defect problem
2.Technical training
Out company will train users based on the manual , system use and
maintenance guide .
The training include system use, system maintenance and system
protection ,after sales serives. mode.
A. Phone service
Please provide your name and phone number ,and your product
detailed fault problem , our technical engineer will offer
tecnhnical support and guidance according to your description .
B. Real-time conmmunication service
Cheng Wen after-sales service engineer will help you solve fault
problem through whtsapp , skype & e-mail , for example , software
or demo video that shows how to operate and control the system .
C.Remote control service
We can remotely link customers ' computers , in order to install
and set up softwares in your computers
,and to dispose of technical faults of led display system.
How to get suitable screen ?
(1) The scenes that display is used for.
(2) Visable distance , viewing angle
(3) Requirement of cabinet resolution
(4) requirement of installation environment
(5)Budget
